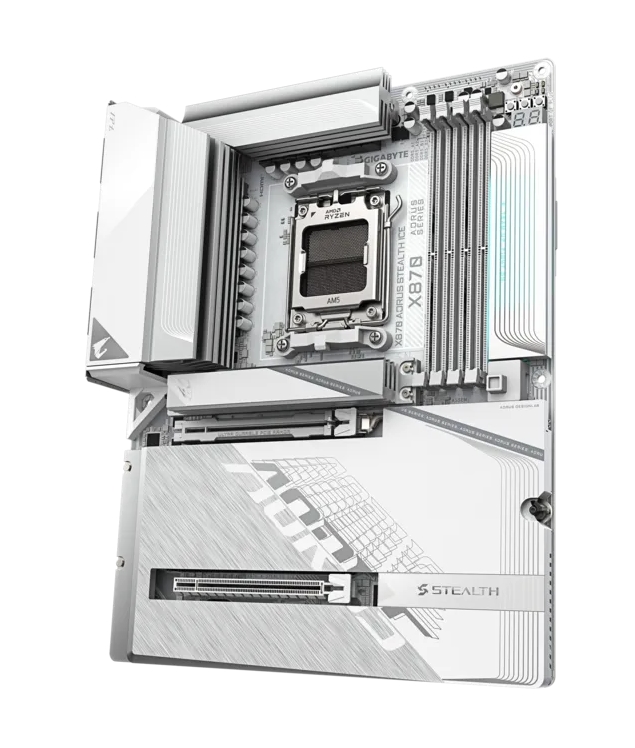

Спецификации

Сокет
AMD AM5 Ryzen
Чипсет
AMD X870
Аудио карта
Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Вграден Wi-Fi
Qualcomm Wi-Fi 7 QCNCM865, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Интерфейси

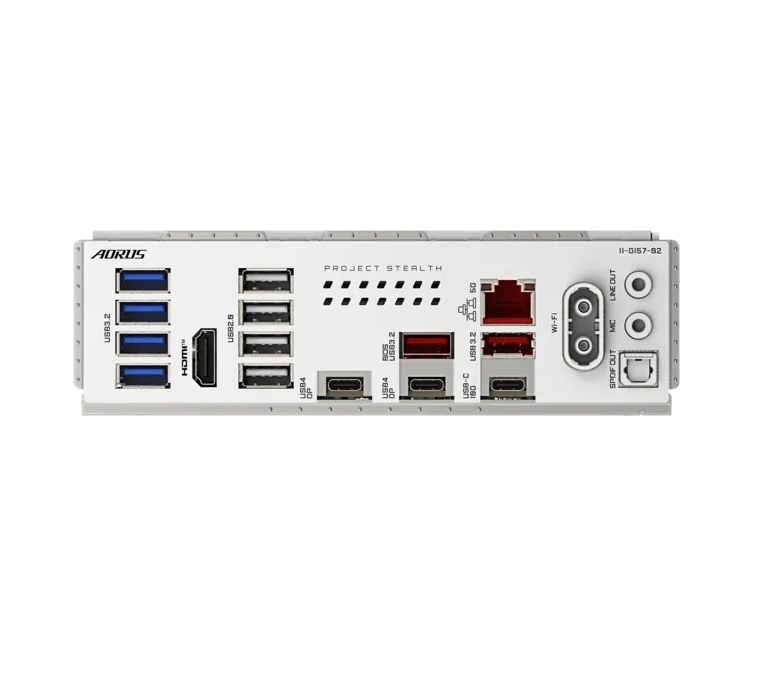

2 USB4 USB Type-C ports, USB Type-C header, with USB 3.2 Gen 2 support, 2 USB 3.2 Gen 2 Type-A ports, 4 USB 3.2 Gen 1 ports, 4 USB 2.0/1.1 ports, HDMI, 2 antenna connectors (2T2R), RJ-45, optical S/PDIF Out connector, 2 audio jacks
Разширителни слотове
PCI Express x16 slot (PCIEX16), integrated in the CPU: PCIe 5.0 x16 mode, PCIe 4.0 x8 mode, PCIe 4.0 x4 mode; Chipset: PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Конектори
24-pin ATX main power connector, 8-pin ATX 12V power connector, 4-pin ATX 12V power connector
M.2 слотове
4 M.2 Socket 3 connectors
Форм фактор
ATX
BIOS характеристики
512 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Екстри
Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Q-Flash Plus, Smart Backup
Гаранция, мес.
36 месеца
